| Brand Name: | Seacent |
| Model Number: | AA-SX-FC-UPC |
| MOQ: | Pazarlık |
| fiyat: | Negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | ayda 1000000 adet |

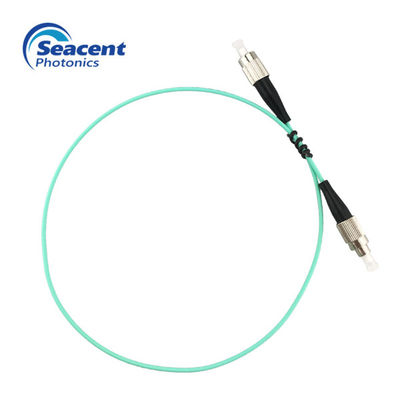

FC/UPC Fiber Optic Jumper Multimode Simplex Fiber Optic Patch Cord
Fiber Optic Patch cord Description
Our assortment contains a wide range of fiber optic patch cable for single-mode and multi-mode cabling, in a variety of lengths and connectors in various combinations.
All patch cables are color-coded with their tube in typical standard colors, in order to quickly identify their purpose.
After checking the suitable cabling type, you can choose your required connector combination in the respective subcategory.
Fiber Optic Patch Cord Features
Fiber Optic Patch Cord Application
Fiber Optic Patch Cord Parameters
| FC,SC,LC | ST,MU | MTRJ | ||||||||||
| SM | MM | SM | MM | SM | MM | |||||||
| UPC | APC | UPC | APC | UPC | APC | UPC | APC | UPC | APC | UPC | APC | |
| Working wavelength(nm) | 1310,1550 | 850,1300 | 1310,1550 | 850,1300 | 1310,1550 | 850,1300 | ||||||
| Fiber type | G657A1 or customed | |||||||||||
| Insertion loss(dB) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Return loss(dB) | ≥55 | ≥60 | ≥35 | ≥35 | ≥50 | ≥50 | ≥35 | ≥35 | ≥50 | ≥50 | ≥35 | ≥35 |
| Repeatability(dB) | ≤0.1 | |||||||||||
| Interchangeability(dB) | ≤0.2 | |||||||||||
| Number of plugs(frequency) | ≥1000 | |||||||||||
| Tensile strength (N) | ≥70 | |||||||||||
| Durability (dB) | ≤0.2 | |||||||||||
| Working temperature (°C) | -40℃- 85℃ | |||||||||||
| Storage temperature (°C) | -40℃- 85℃ | |||||||||||
Fiber Optic Patch Cord Detailed Specification
|
|
